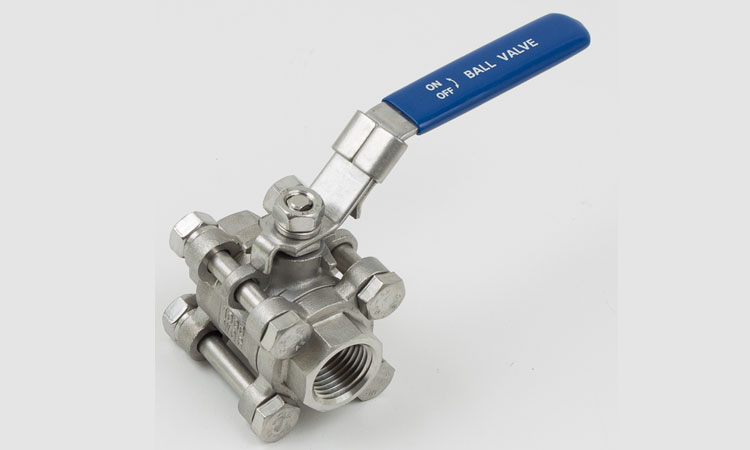

Size | 50NB — 600NB |
---|---|
Material | M.S. / C.I. / C.S. / F.C.S. / SS 304/304L / SS 316/316L / Alloy 20 / Hestalloy B/C & Monel |
Pressure | 150PS1 |
Temperature | 0 Deg C - 1200 Deg C. |
Body , Chest | Solid One piece casting of Cast Iron Fg 260, Cast Steel Gr WCB ,CF8,CF8M. |
Seat | Integral to Body, Soft, Optional. |
Gate | AISI SS 304,316,316L,317,317L |
Screw Spindle | AISI SS 410,304,316. |
Nut | Brass |
Yoke | Plate type of MS . |
Gland Follower | Cast Iron , Cast steel , Ductile Iron ,CF8,CF8M. |
Hand Wheel | Cast Iron , Cast steel , Ductile Iron |
Gland Packing | PTFE , PTFE Impregnated |
Ends | Lugged |
Port | STANDARD [Round], Optional V Port, Diamond Port,. |
1 | Body | Cast Iron/A126 Class B | |||
2 | Ball | Cast Iron/PFA* Fused | |||
3 | Stem | Stainless Steel | |||
4 | Gland Plate | Steel | |||
5 | Handle | Steel | |||
6 | Handle Bracket | Ductile Iron | |||
7 | Packing Follower | Stainless Steel | |||
8 | Stem Indicator | Steel | |||
9 | Handle Bracket Spacer | Steel | |||
10 | Stem Stud | Carbon Steel | |||
11 | Gland Stud | Carbon Steel | |||
12 | Body Stud | Carbon Steel | |||
13 | Body Nut | Carbon Steel | |||
14 | Handle Bracket Bolt | Carbon Steel | |||
15 | Packing | PTFE (Chevron) | |||
16 | Body Gasket | PTFE | |||
17 | Seat Ring | RPTFE 15% GF | |||
18 | Back Seat O-Ring | PTFE | |||
19 | Handle Grip | Vinyl Rubber Foam | |||
20 | Body Cap | Cast Iron/A126 Class B |
Size range | 15 MM to 600 MM |
pressure | 150 class to 2500 class |
Maximum Operating Temperature | 232 °C 450 °F |
