Size | 50NB — 600NB |
---|---|
Material | C.I. / C.S. / F.C.S. / SS 304/304L / SS 316/316L / Alloy 20 / Hestalloy B/C & Monel. |
Pressure | 150PS1 |
Temperature | 0 Deg C - 1200 Deg C. |
Body , Chest | Solid One piece casting of Cast Iron Fg 260, Cast Steel Gr WCB ,CF8,CF8M. |
Seat | Integral to Body, Soft, Optional. |
Gate | AISI SS 304,316,316L,317,317L |
Screw Spindle | AISI SS 410,304,316. |
Nut | Brass |
Yoke | Plate type of MS . |
Gland Follower | Cast Iron , Cast steel , Ductile Iron ,CF8,CF8M. |
Hand Wheel | Cast Iron , Cast steel , Ductile Iron |
Gland Packing | PTFE , PTFE Impregnated |
Ends | Flanged ends, Screwed ends, Socket weld ends & Butt weld ends. |
Port | STANDARD [Round], Optional V Port, Diamond Port,. |
Size range | 15 MM to 400 MM |
pressure | 150 class to 2500 class |

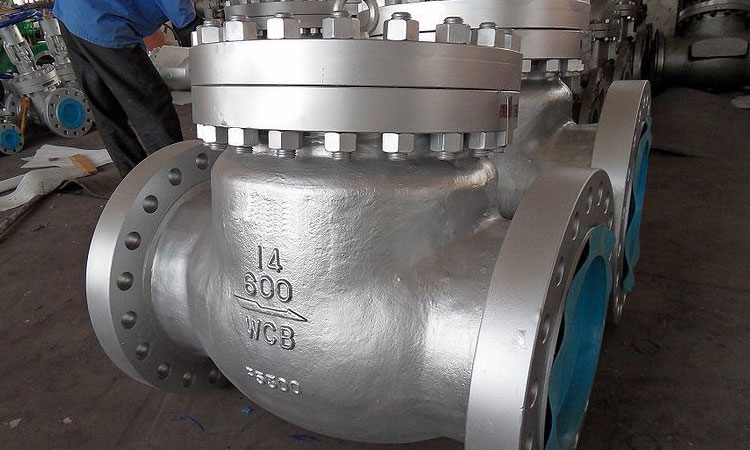

No. | Part | WCC |
---|---|---|
1 | Body | A216 WCC |
2 | Bonnet | A105 |
3 | Seat | 410 + HF |
4 | Arm | A216 WCC |
5 | Disc | A216 WCC + 316 |
6 | Shaft | 316 SS |
7 | End Cap | A105 |
8 | Bearing | Nitronic 60 |
9 | End Bearing | Nitronic 60 |
10 | Spacer | A105 |
11 | Gasket | SS Graphite |
12 | Gasket | SS Graphite |
13 | Washer | 304 SS |
14 | Pin | 304 SS |
15 | O-Ring | VITON |
16 | O-Ring | VITON |
17 | O-Ring | VITON |
18 | O-Ring | VITON |
19 | Stud | A193 B7M |
20 | Stud | A193 B7M |
21 | Heavy Hex Nut | A194 2HM |
22 | Heavy Hex Nut | A194 2HM |
23 | Slotted Hex Nut | A194 2HM |
24 | Set Screw | 18-8SS |
25 | Key | 1045 |
26 | Graphoil Rope | Graphoil |
27 | Graphoil Rope | Graphoil |
28 | NPT Plug | 316 SS |
29 | Eye Bolt | Carbon Steel |
